Nickel-Based Alloy Coil

Nickel-Based Alloy Coil
Nickel-based alloy coil is a high-performance metal material, mainly composed of nickel and other alloy elements, with excellent high-temperature strength, corrosion resistance and good processing performance. This type of alloy coils are widely used in aerospace, nuclear power, solar energy, chemical industry, marine engineering, oil exploration and machinery manufacturing, especially in the manufacturing of components that need to withstand highly corrosive and high-temperature environments.
+86 19063077509

WhatsApp

- Product Description -

ItemDetails
Product NameInconel 625 Alloy Coil / Nickel-Chromium-Molybdenum Alloy Coil
Grade / UNSInconel 625 / UNS N06625 / W.Nr 2.4856
StandardsASTM B443, ASME SB443, AMS 5599, AMS 5869, ISO 6208, EN 10095
Material CompositionNickel (Ni) ≥ 58.0% (balance), Chromium (Cr) 20.0–23.0%, Molybdenum (Mo) 8.0–10.0%, Niobium (Nb) 3.15–4.15%, Iron (Fe) ≤ 5.0%, Cobalt (Co) ≤ 1.0%, Manganese (Mn) ≤ 0.50%, Silicon (Si) ≤ 0.50%, Carbon (C) ≤ 0.10%
Thickness Range0.10 – 5.0 mm (cold rolled); thicker gauges available upon request
Width Range5 – 1200 mm (custom sizes available upon request)
Surface FinishMill, Bright, TR, Polished, Annealed, as required
Temper / ConditionAnnealed (Grade I), Solution Annealed (Grade II)
Density8.44 g/cm³
Melting Range1290 – 1350°C
Operating Temperature-184°C to +980°C (-300°F to 1800°F)
Tensile Strength (Annealed)830 – 1100 MPa (120 – 150 ksi)
Yield Strength (Annealed)≥ 414 MPa (60 ksi)
Elongation (Annealed)≥ 30%
Key PropertiesSolid solution strengthened, no age-hardening required; excellent oxidation and corrosion resistance; outstanding resistance to chloride-ion stress-corrosion cracking, pitting and crevice corrosion; non-magnetic; good formability and weldability
ApplicationsAerospace (engine exhaust systems, turbine components), marine (seawater applications, propeller blades, mooring cables), chemical processing (reactors, heat exchangers), nuclear power generation, oil & gas production, springs, seals, bellows
Minimum Order Quantity (MOQ)1 ton (negotiable for trial orders)
PriceNegotiable / Subject to quotation
Delivery TimeStock items: 3–7 working days; Production orders: 15–30 working days after deposit
Payment TermsT/T (30% deposit + 70% against BL copy), L/C at sight
PackagingStandard export seaworthy packaging: waterproof paper + steel edge protection + wooden pallet / wooden case
Supply Ability300–500 tons per month
CertificationMill Test Certificate (MTC), SGS, ISO available upon reques
ItemDetails
Product NameHastelloy C-276 Alloy Coil / Nickel-Molybdenum-Chromium Alloy Coil
Grade / UNSHastelloy C-276 / UNS N10276 / W.Nr 2.4819
StandardsASTM B575, ASME SB575, ASTM B906, ISO 6208, DIN 17750
Material CompositionNickel (Ni) balance, Molybdenum (Mo) 15.0–17.0%, Chromium (Cr) 14.5–16.5%, Iron (Fe) 4.0–7.0%, Tungsten (W) 3.0–4.5%, Cobalt (Co) ≤ 2.5%, Manganese (Mn) ≤ 1.0%, Carbon (C) ≤ 0.010%, Silicon (Si) ≤ 0.08%
Thickness Range0.05 – 6.0 mm (cold rolled); thicker gauges available upon request
Width Range5 – 1550 mm (custom sizes available upon request)
Surface FinishMill, Bright, Annealed, as required
Temper / ConditionAnnealed, Solution Annealed, Cold Rolled
Density8.89 g/cm³
Melting Range1325 – 1370°C
Operating Temperature-184°C to +400°C (-300°F to 750°F)
Tensile Strength (Annealed)830 – 1100 MPa (120 – 160 ksi)
Yield Strength (Annealed)≥ 283 – 355 MPa
Elongation (Annealed)≥ 40%
Key Properties"Universal" corrosion-resistant alloy; exceptional resistance to pitting, crevice corrosion and stress corrosion cracking in both oxidizing and reducing environments; hardened only by cold-working; excellent weldability with low carbon and silicon content; outstanding resistance to chlorides, wet chlorine, sulfuric acid, hydrochloric acid and mixed acids
ApplicationsChemical processing (reactors, heat exchangers, valves, piping), pollution control (flue gas desulfurization scrubbers), pulp & paper production, waste treatment, oil & gas (sour gas service, downhole tools), marine engineering (seawater heat exchangers), nuclear fuel reprocessing
Minimum Order Quantity (MOQ)1 ton (negotiable for trial orders; sample orders available)
PriceNegotiable / Subject to quotation
Payment TermsT/T (30% deposit + 70% against BL copy), L/C at sight
PackagingStandard export seaworthy packaging: waterproof paper + steel edge protection + wooden pallet / wooden case
Supply Ability200–500 tons per month
CertificationMill Test Certificate (MTC), NACE MR0175/ISO 15156-3 compliant available upon request

- Product Show -

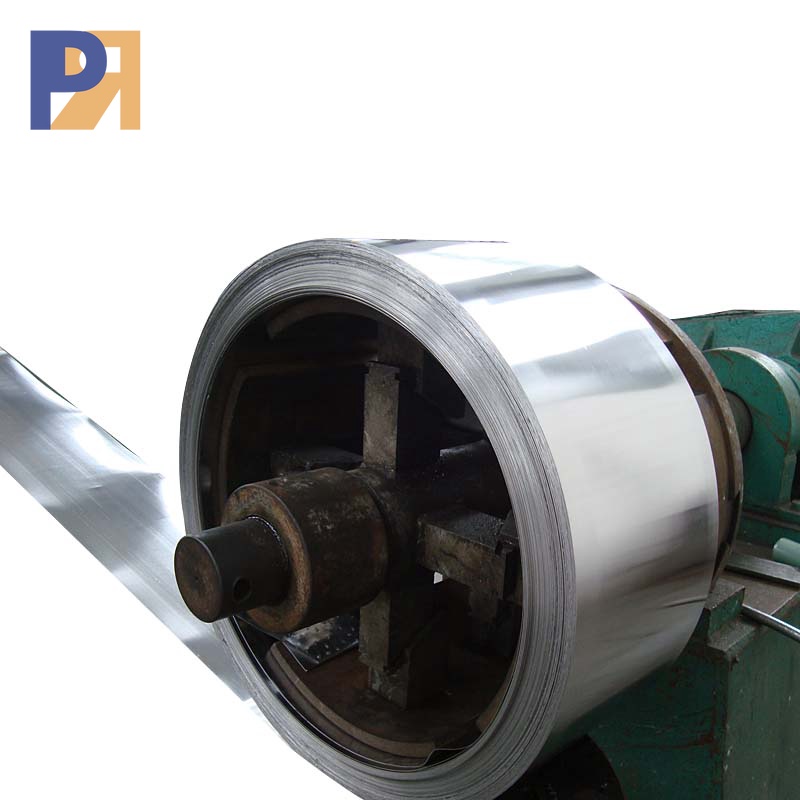

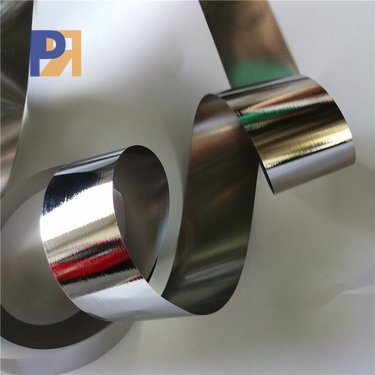

Nickel-Based Alloy Coil
