Monel Alloy Coil

Monel Alloy Coil
This product is a nickel-copper corrosion-resistant alloy cold-rolled/hot-rolled steel coil, conforming to US UNS N04400 and ASTM B127/ASME SB-127 standards. The nominal composition is Ni ≥ 63%, Cu 28~34%, Fe ≤ 2.5%. The alloy is a single-phase austenitic solid solution with a density of 8.83 g/cm³, a melting point of 1300~1350°C, an annealed tensile strength ≥ 485 MPa, a yield strength ≥ 195 MPa, and an elongation ≥ 35%. It exhibits excellent corrosion resistance in seawater, hydrofluoric acid, hot concentrated alkalis, reducing acids, and various organic media, with no tendency for stress corrosion. The operating temperature range is -184°C to 260°C, and it is widely used in marine engineering, chemical equipment, oil extraction, and the nuclear industry.
+86 19063077509

WhatsApp

- Product Description -

ItemDetails
Product NameMonel 400 Alloy Steel Coil / Nickel-Copper Alloy Coil
Grade / UNSMonel 400 / UNS N04400 / W.Nr 2.4360
StandardsASTM B127, ASME SB-127, AMS 4544, QQ-N-281, GB/T15007-2008
Material CompositionNickel (Ni) ≥ 63.0%, Copper (Cu) 28.0–34.0%, Iron (Fe) ≤ 2.5%, Manganese (Mn) ≤ 2.0%
Thickness RangeCold Rolled: 0.3 – 6.0 mm; Hot Rolled: 1.0 – 50 mm
Width Range1.5 – 1550 mm (custom sizes available upon request)
Surface Finish2B, BA, Mirror, Satin, Brushed, Hot Rolled, Cold Rolled, as required
Temper / HardnessAnnealed, 1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, EH, SH
Tensile Strength (Annealed)≥ 485 MPa (70 ksi)
Yield Strength (Annealed)≥ 195 MPa
Elongation (Annealed)≥ 35%
Density8.83 – 8.84 g/cm³
Melting Range1300 – 1350°C
Operating Temperature-184°C to +260°C (-300°F to 500°F)
Key PropertiesHigh strength and toughness, excellent corrosion resistance in seawater, hydrofluoric acid, sulfuric acid, and alkalies, no stress corrosion cracking
ApplicationsMarine engineering, chemical processing, oil & gas extraction, desalination systems, heat exchangers, pumps, valves, nuclear industry, pharmaceutical equipment
Minimum Order Quantity (MOQ)1 ton (negotiable for trial orders)
PriceNegotiable / Subject to quotation
Delivery TimeStock items: 3–7 working days; Production orders: 15–30 working days after deposit; Custom sizes/processing: 7–15 working days
Payment TermsT/T (30% deposit + 70% against BL copy), L/C at sight, Western Union
PackagingStandard export seaworthy packaging: waterproof paper + steel edge protection + wooden pallet / wooden case
Supply Ability300–500 tons per month
CertificationMill Test Certificate (MTC), SGS, ISO available upon request

- Product Show -

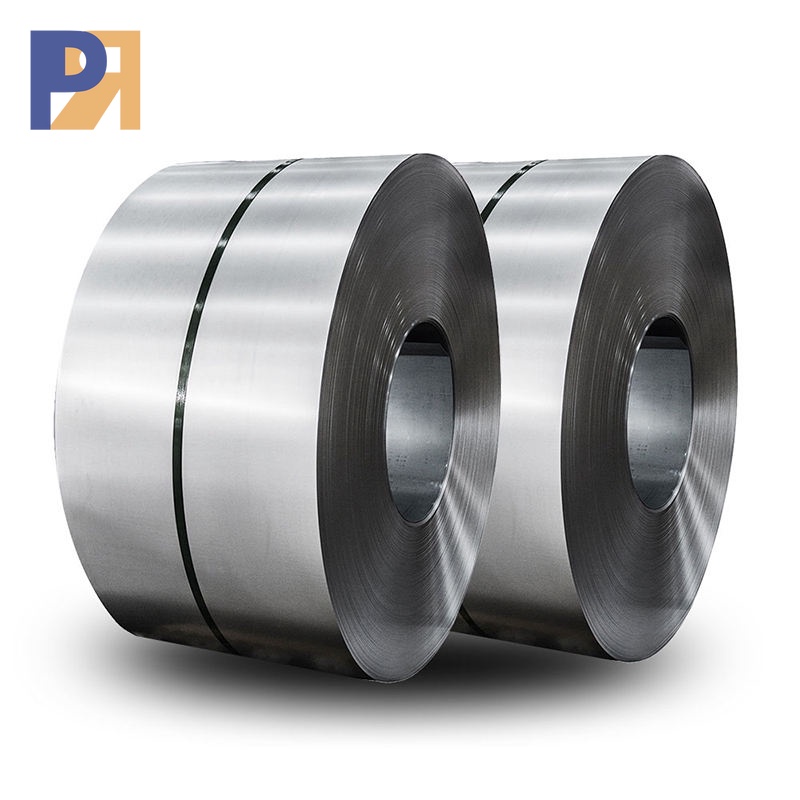

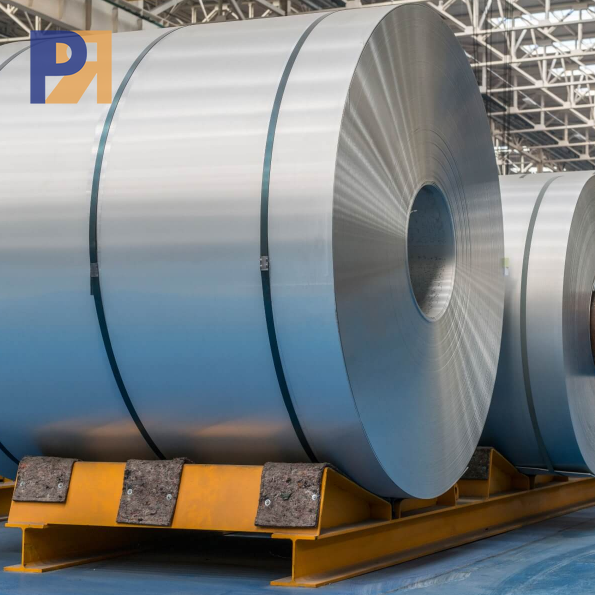

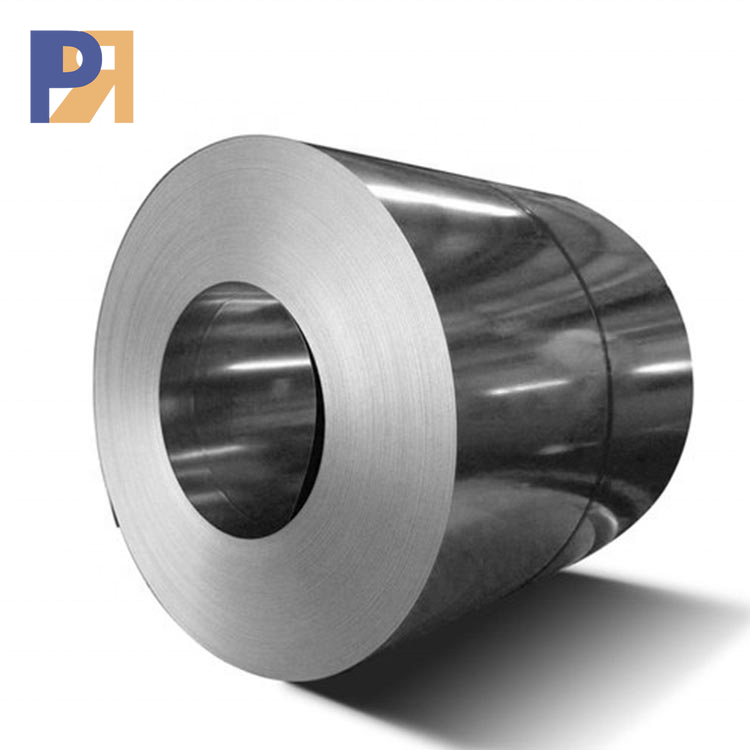

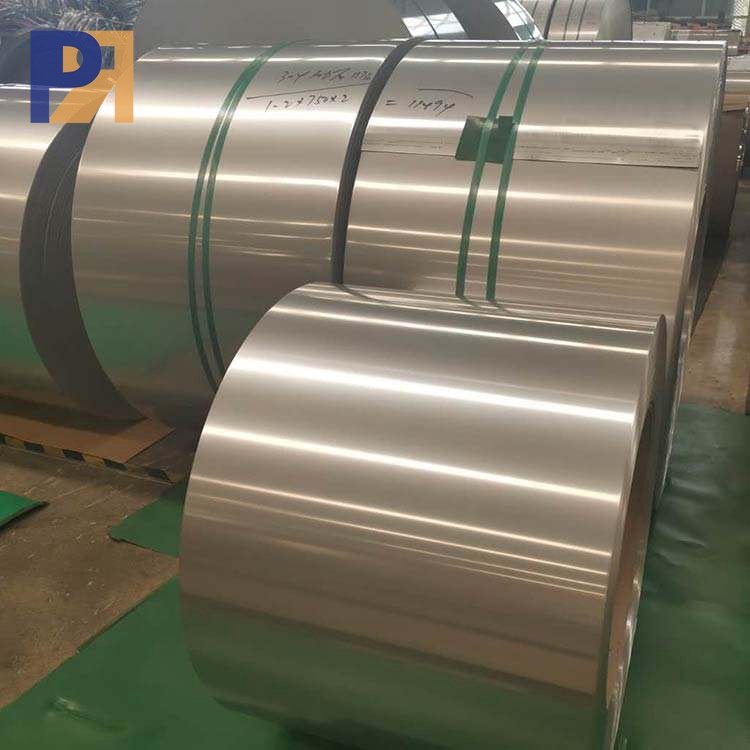

Monel Alloy Coil
